GYS 064461 AKU NEEDIPÜSTOL 20 000N
Description:

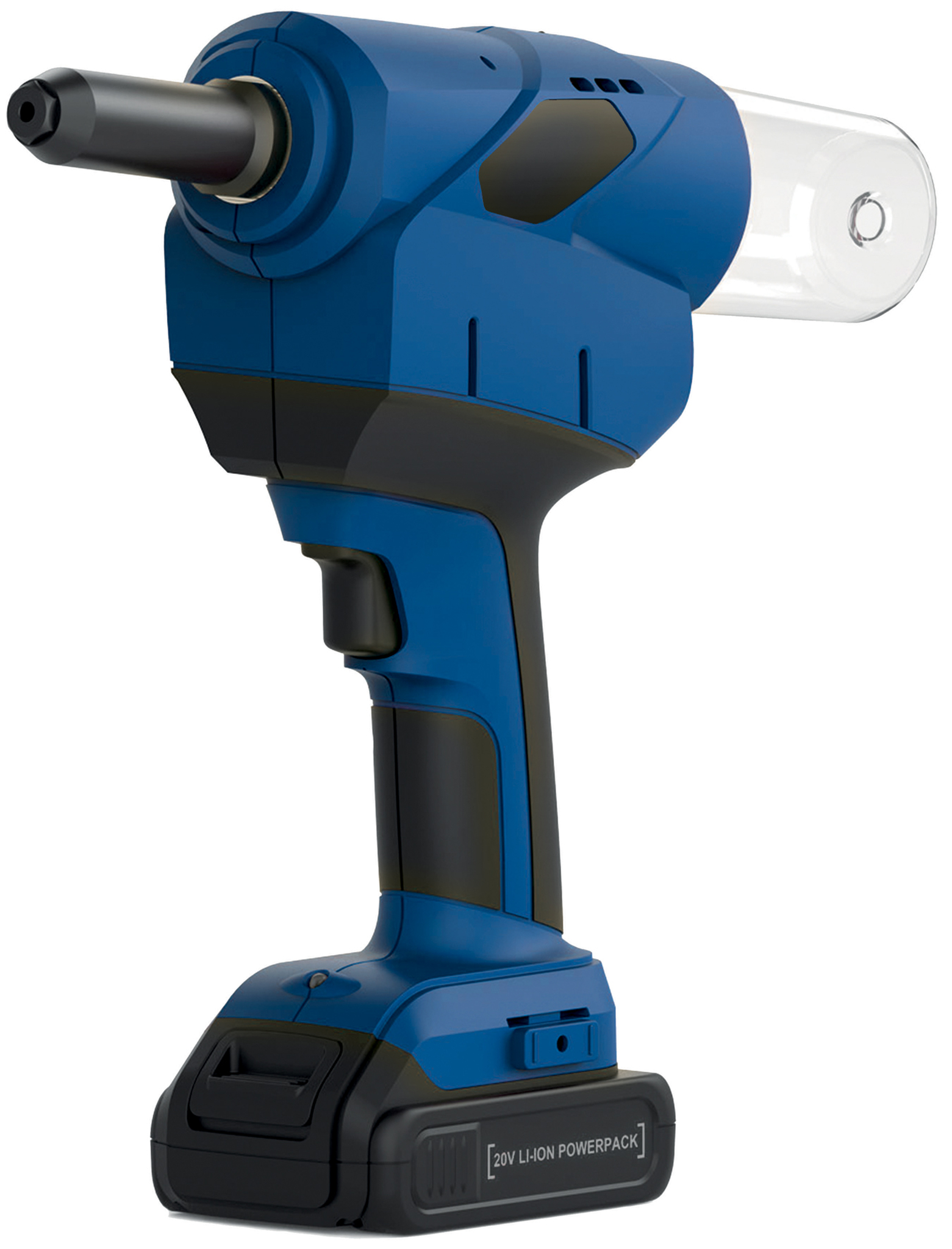

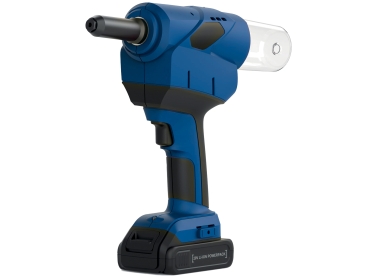

The ER20 riveting machine is a powerful battery operated tool for blind riveting up to 6.4 mm
diameter (all materials), especially for structural automotive rivets. With a setting pressure of
20,000 N and a very large stroke of 30 mm, it is also possible to install blind star riveting nut
reliably and quickly.
INDIVIDUAL RETURN ADJUSTMENT
• 2 return modes:
Manual: the pressure remains on until the trigger is released when it returns to the initial position.
Automatic: Rivet setting is automatic which reduces the riveting cycle time.
ERGONOMICS
• Low weight (2 Kg) and rubber handle.
• Increased comfort thanks to the rotating trigger with
reduced release force / release stroke.
• Compact dimensions, with end cap for working without
shank collector.
OPTIMISED MOTORISATION
• Its brushless DC motor guarantees a very long life cycle,
almost without wear.
• Its low power requirement and reduced heat generation
increase battery life and efficiency

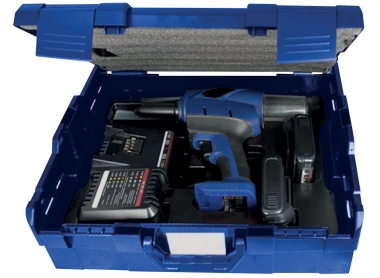

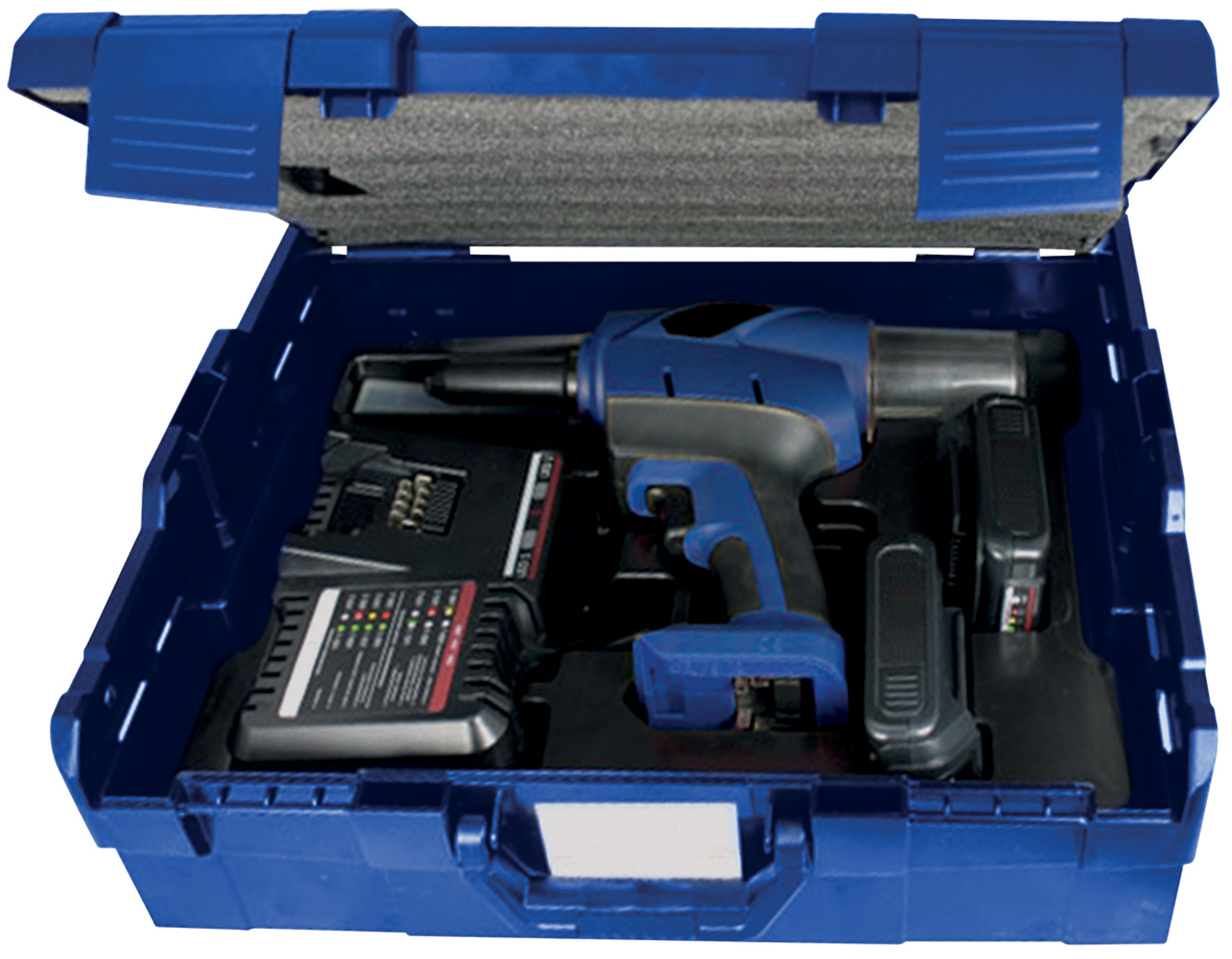

Included:
• 1 carrying case
• 2 20V batteries
• 1 charger
• 1 box of nose pieces
• 1 assembly wrench
Batteries:
• x2: 20 V / 2 Ah Li-ion battery
• recharge in 30 minutes
• charge indicator
• Capacity up to 2000 blind rivets (depending on type and material).

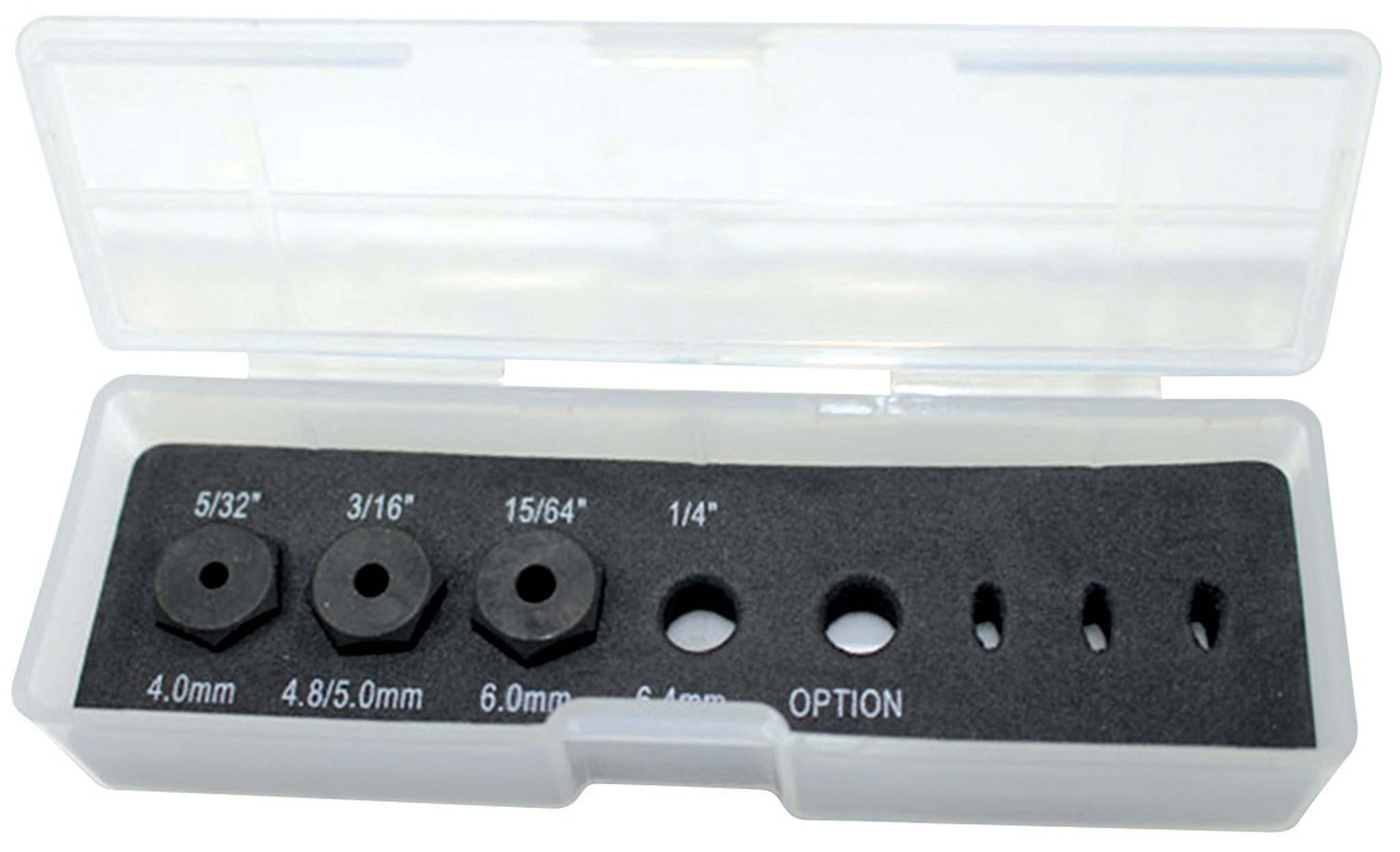

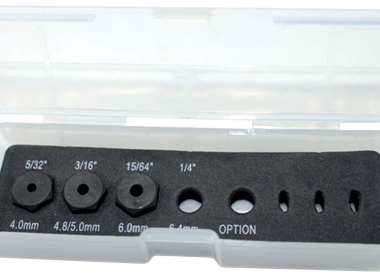

Box of nose pieces:
• Plastic box for nose pieces and the replacement set of spare jaws.
• 4.0, 4.8, 6.0, 6.4 mm
